AWS Glue Crawler

Overview

In this section, we will configure an AWS Glue Crawler to automatically scan data from Amazon S3, detect the schema, and create metadata tables in the AWS Glue Data Catalog.

After completing this session, you will be able to:

• Create a Glue Database in the Data Catalog
• Create an IAM Role for the Glue Crawler
• Configure an S3 data source for the Crawler
• Configure the output database and table prefix
• Create and run a Glue Crawler
• Verify the generated table in the Glue Data Catalog

Workflow Overview

Raw data is stored in Amazon S3 in Parquet format. AWS Glue Crawler scans the data source, identifies the file structure, detects the schema, and creates metadata tables inside the AWS Glue Data Catalog. After the metadata is available, an AWS Glue ETL Job can use that catalog information to read, transform, and write processed data back to Amazon S3.

Important: AWS Glue Crawler does not move or copy your data into the Data Catalog.
The actual data still stays in Amazon S3. The Data Catalog only stores metadata such as table name, schema, column types, partitions, and S3 location.

The simplified workflow is:

Key Concepts

Before creating the crawler, it is important to understand the main components involved in this lab.

Amazon S3

Amazon S3 is used as the data lake storage layer. In this workshop, the raw dataset is stored in S3 as Parquet files.

Example: s3://yellow-taxi-trip-demo-fcaj

Parquet is commonly used in analytics workloads because it is columnar, compressed, and efficient for large-scale data processing.

AWS Glue Crawler

AWS Glue Crawler automatically scans data stored in S3 and detects schema information.

The crawler can identify:

• File format
• Column names
• Data types
• Partition structure
• S3 location
• Table metadata

The crawler then writes this metadata into the AWS Glue Data Catalog.

AWS Glue Data Catalog

AWS Glue Data Catalog is a centralized metadata repository. It stores databases and tables that describe your data.

For example, after the crawler scans S3, it may create a table that points to your Parquet files.

This table can later be used by:

• AWS Glue ETL Jobs
• Amazon Athena
• Amazon EMR
• Amazon Redshift Spectrum
• Other analytics services
• AWS Glue ETL Job

AWS Glue ETL Job is used to transform data. It can read data from S3 by using the table definition from Glue Data Catalog.

Configuration

In this workshop, we will use the following sample configuration.

You can change these names based on your own AWS environment.

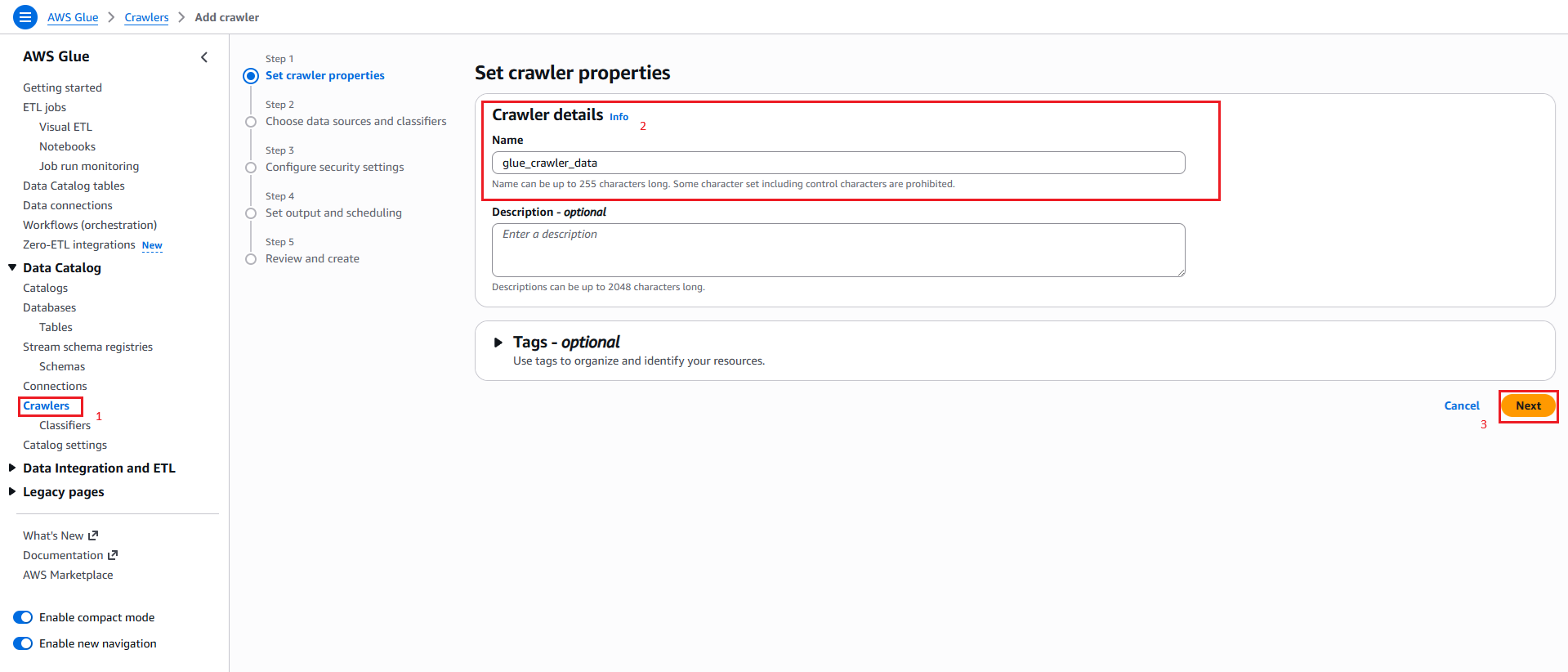

Step 1: Set crawler properties

1. Go to the AWS Glue Console
2. In the left navigation pane, choose Crawlers
3. Choose Add crawler

Step 2: Choose Data Source and Classifiers

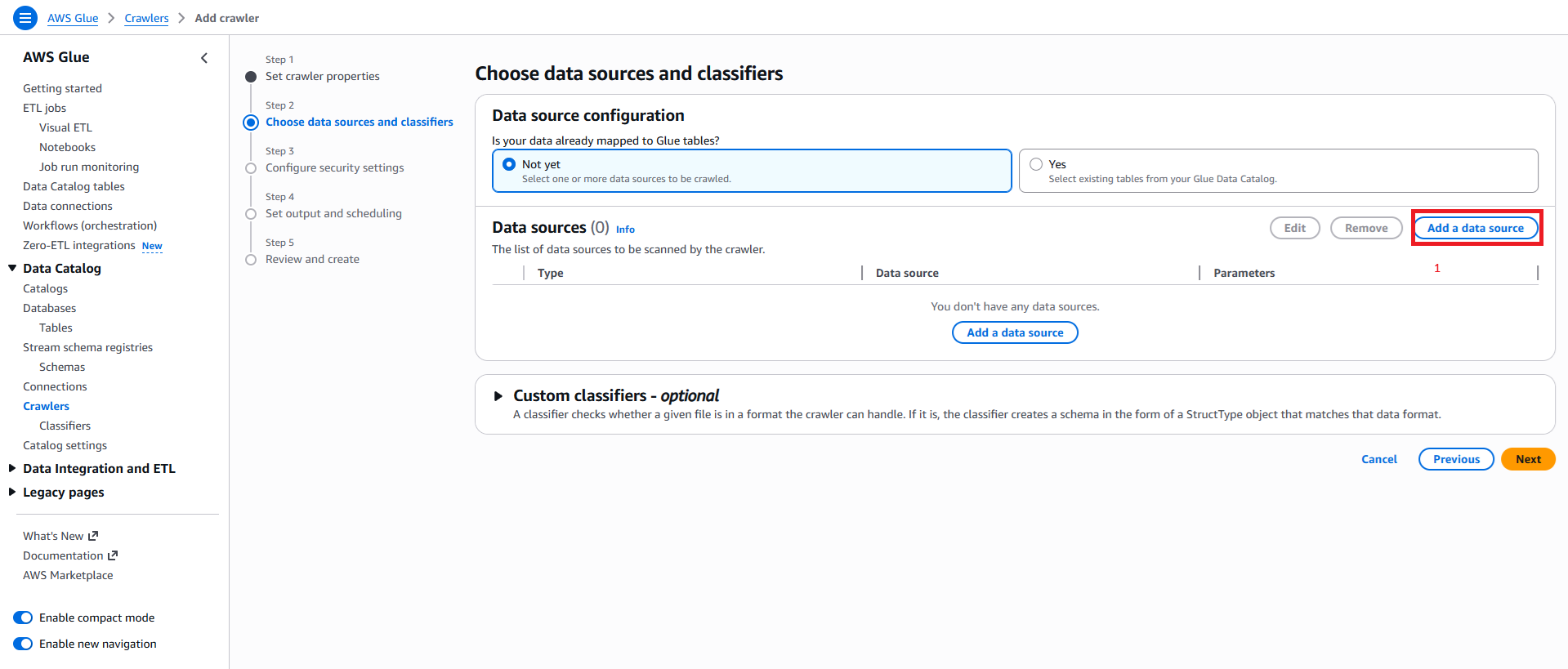

1. Click add a data source button

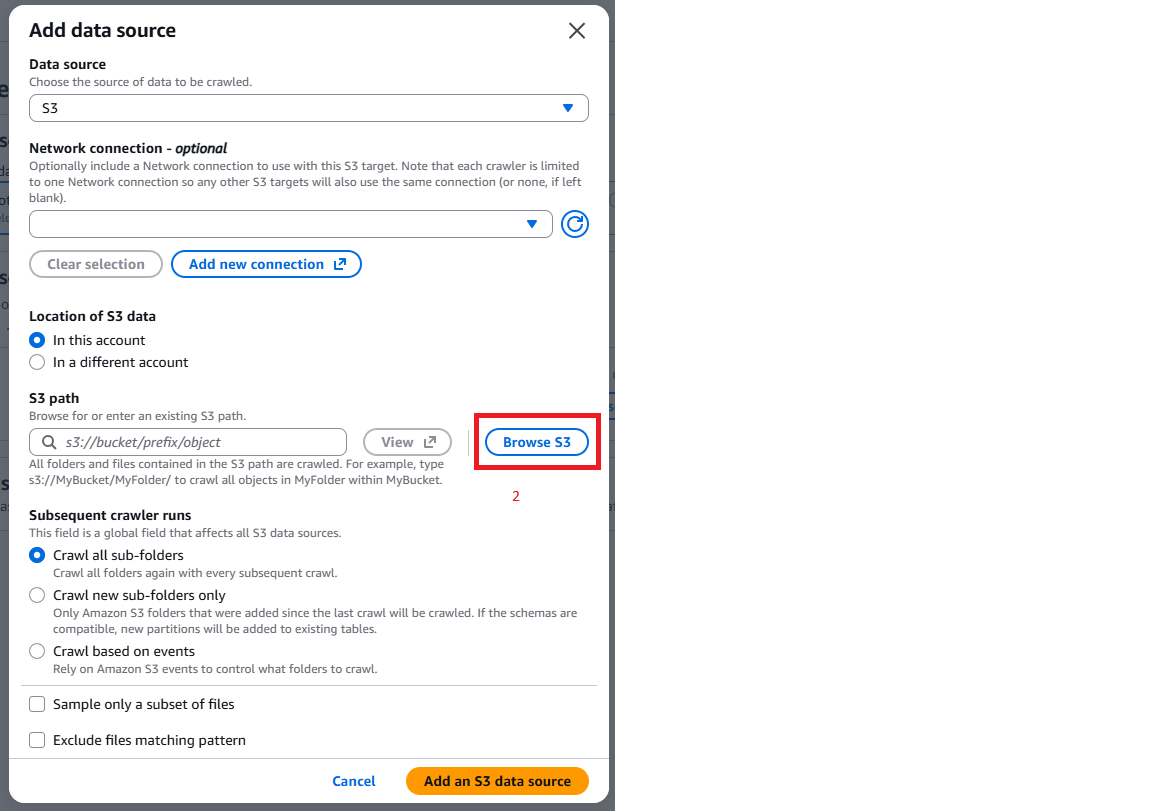

2. Click Browse S3

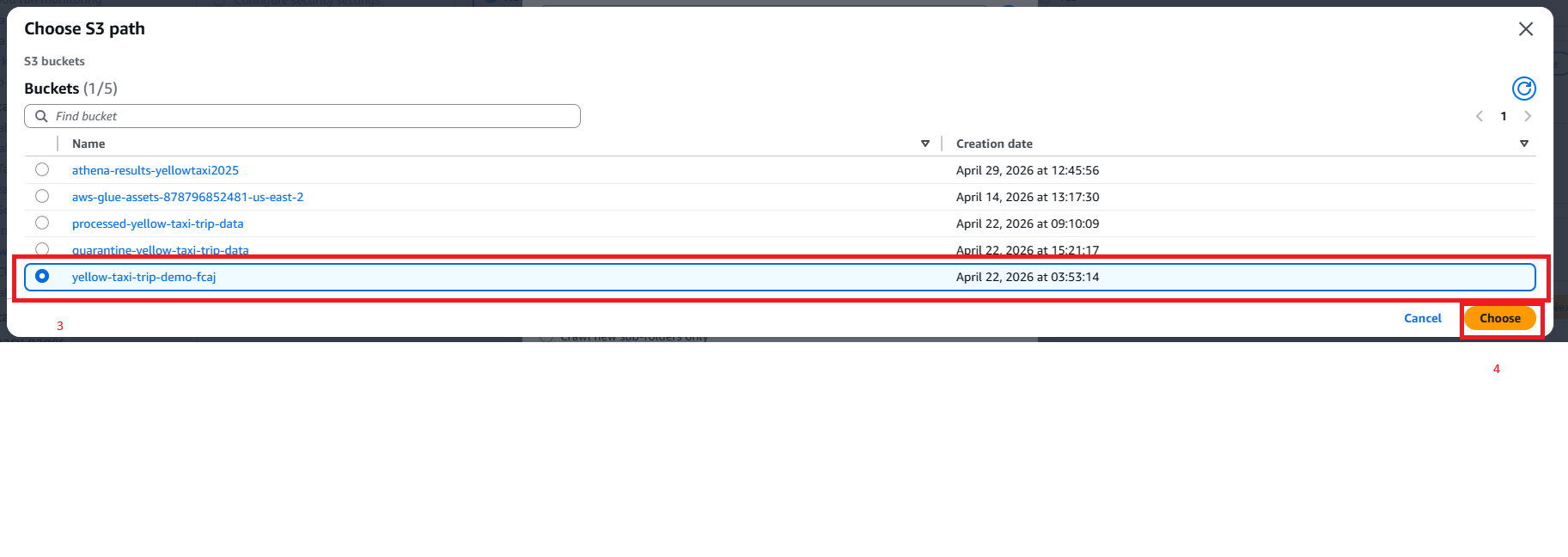

3. Select the S3 Bucket an click button Choose

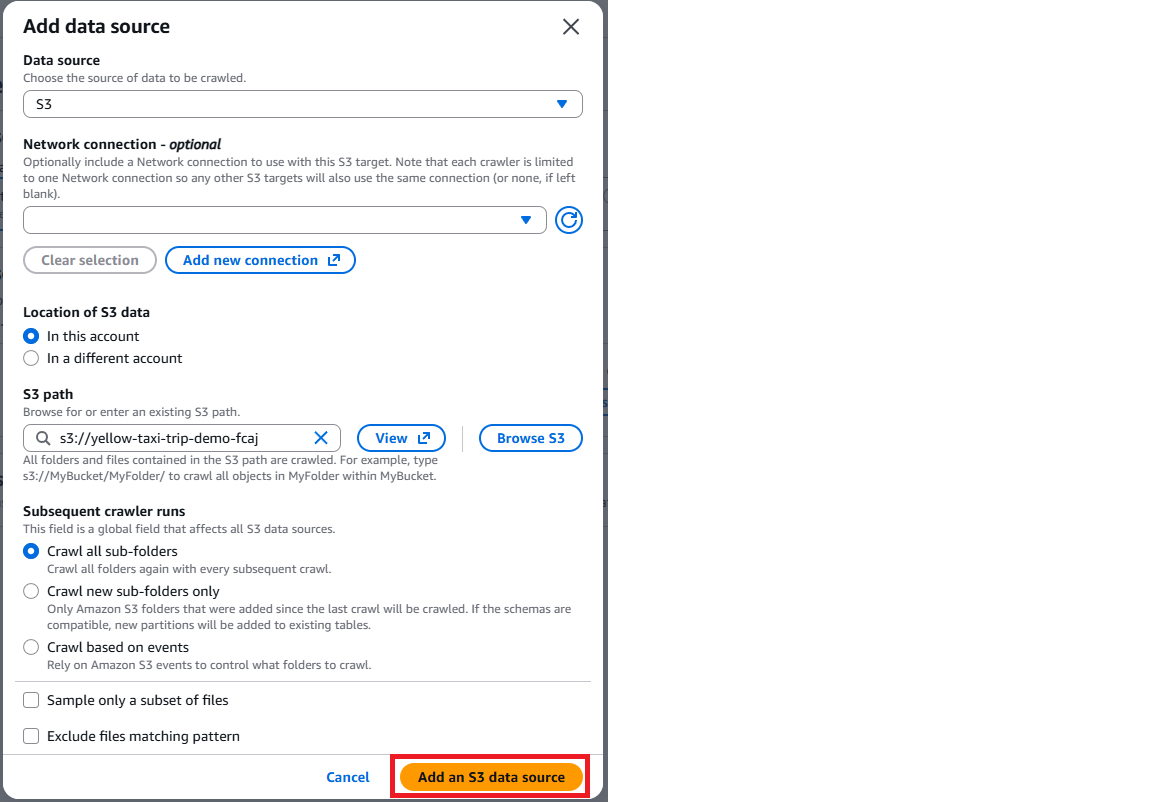

4. Click button Add S3 Data Source and click next

Step 3: Configure security settings

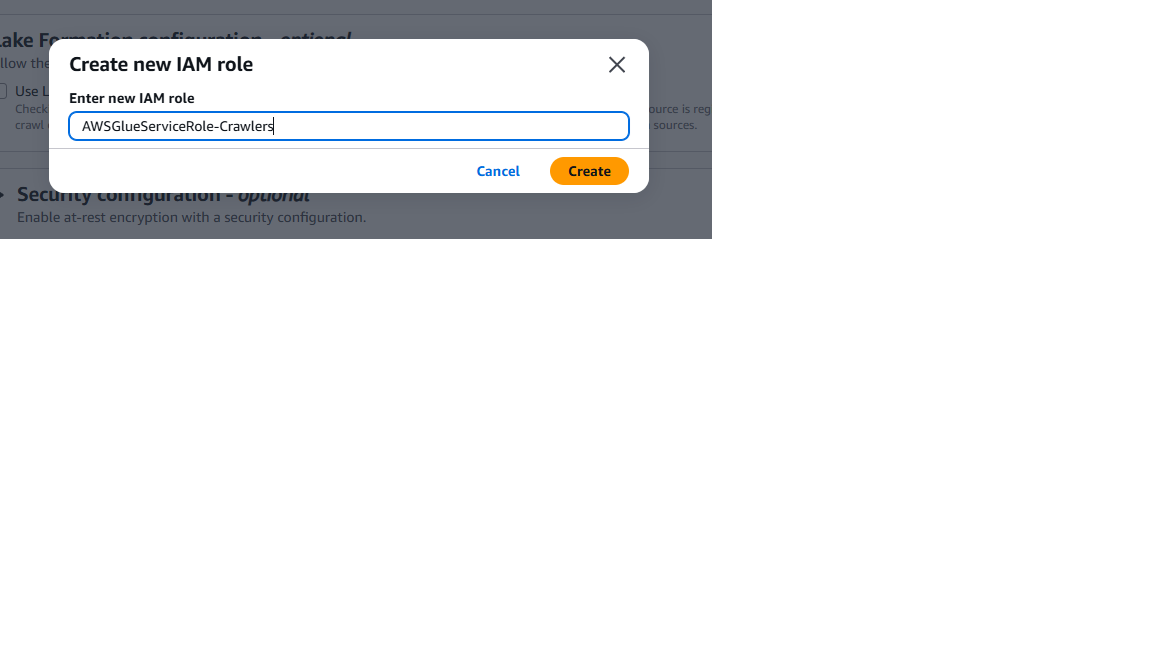

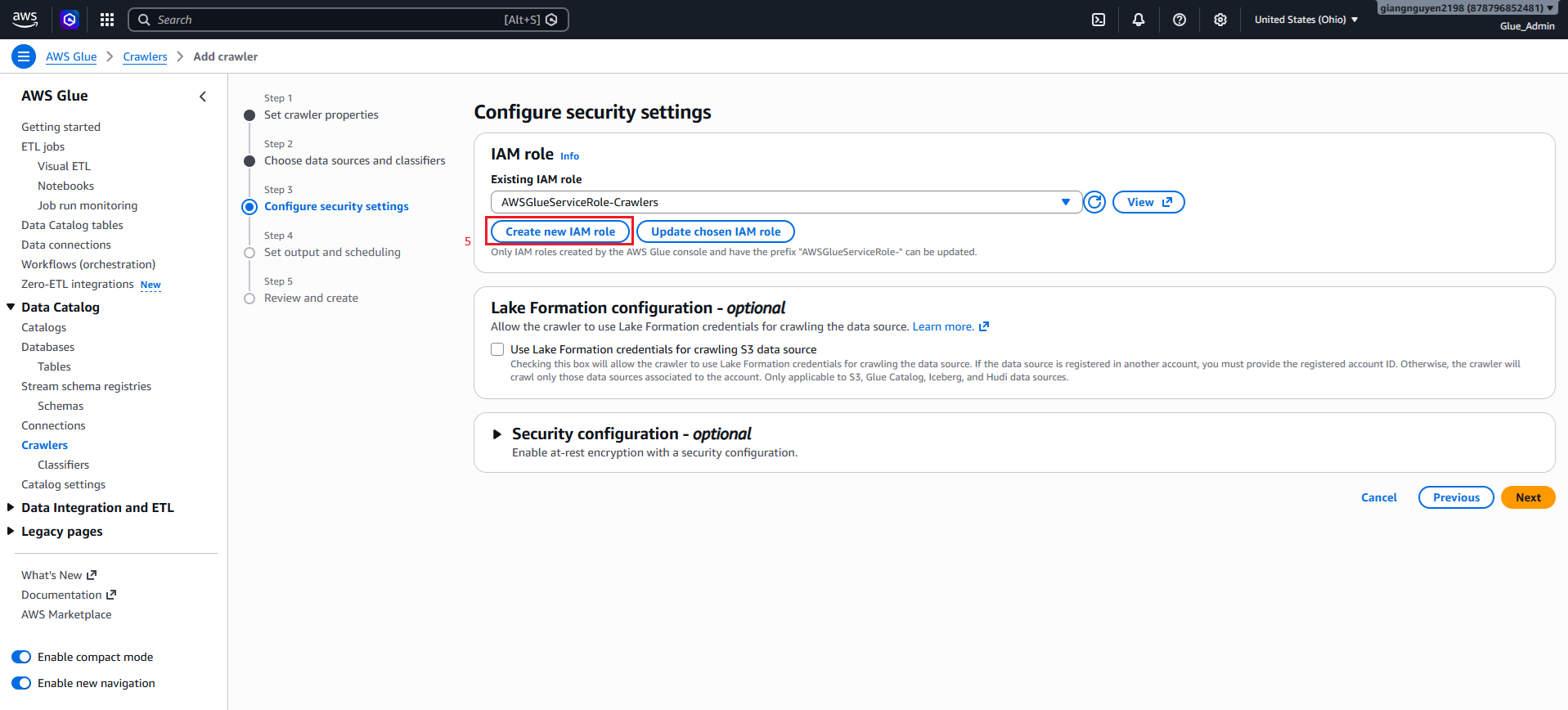

1. Click button Create new IAM Role and set name

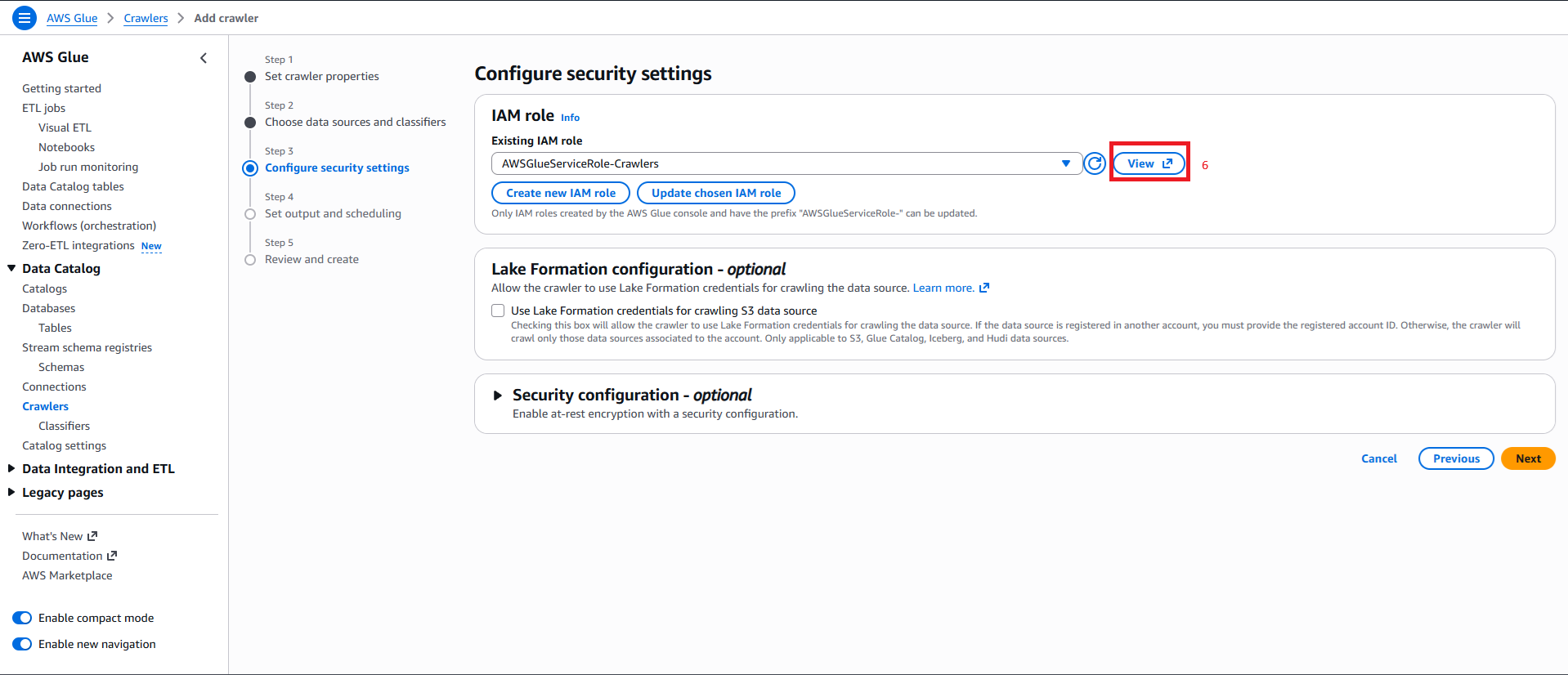

2. Click button View to configure role access to Read and Write data in S3

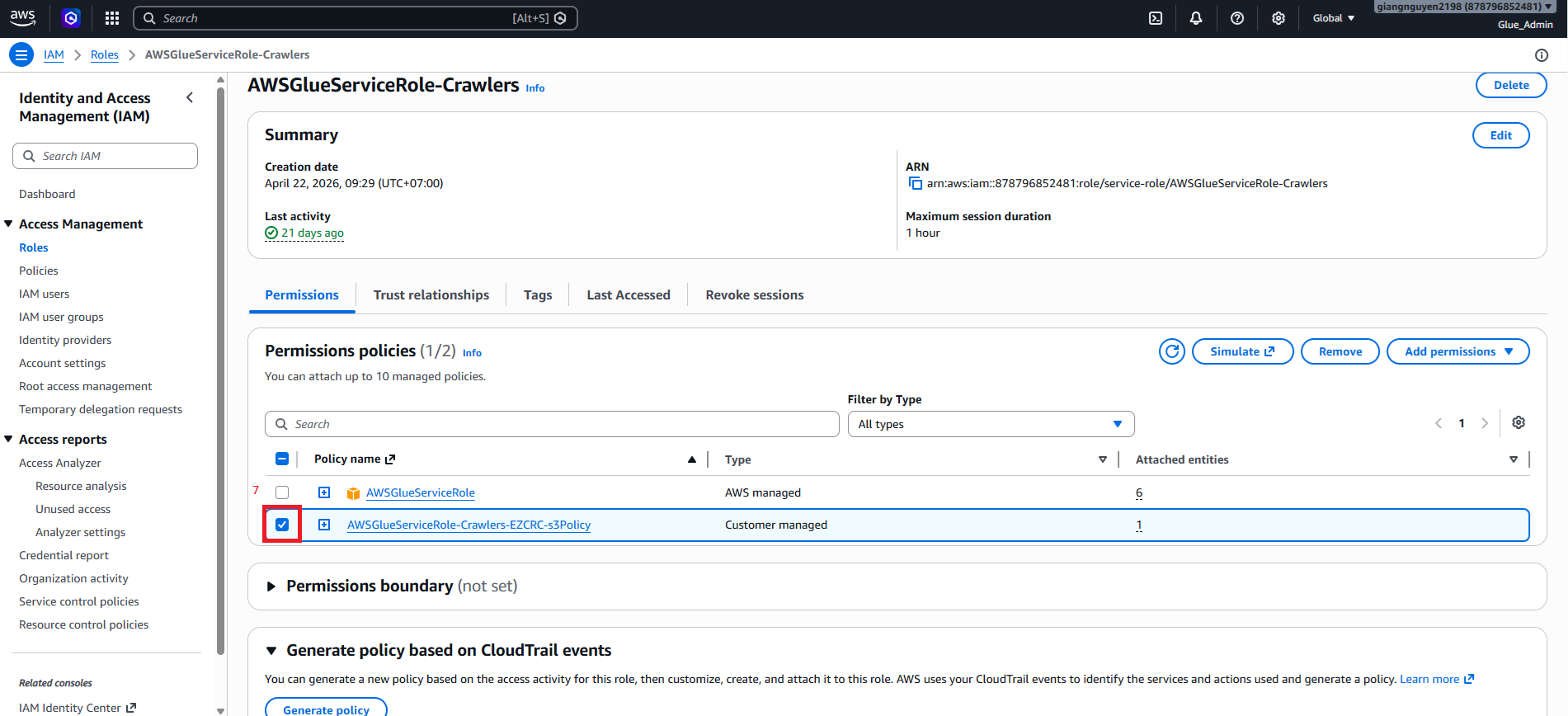

3. Click Permission policy name to edit

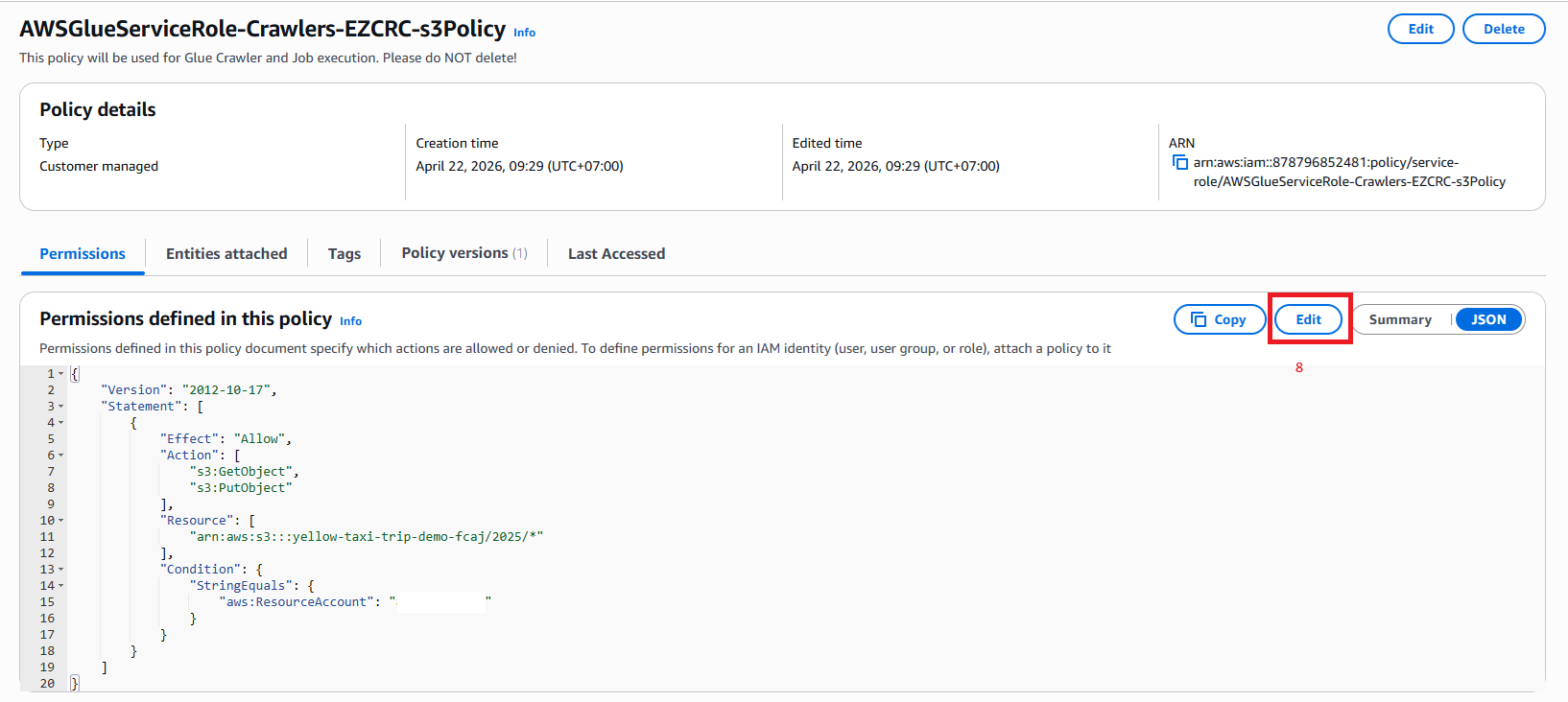

4. Click Edit permission to edit:

• In the Action section, you should set S3:Get Object and Put Object to get permission to retrieve data from S3.
• In the Resource section, since my parquet file contains many subfiles, I added /* so that it can read the files inside as well.

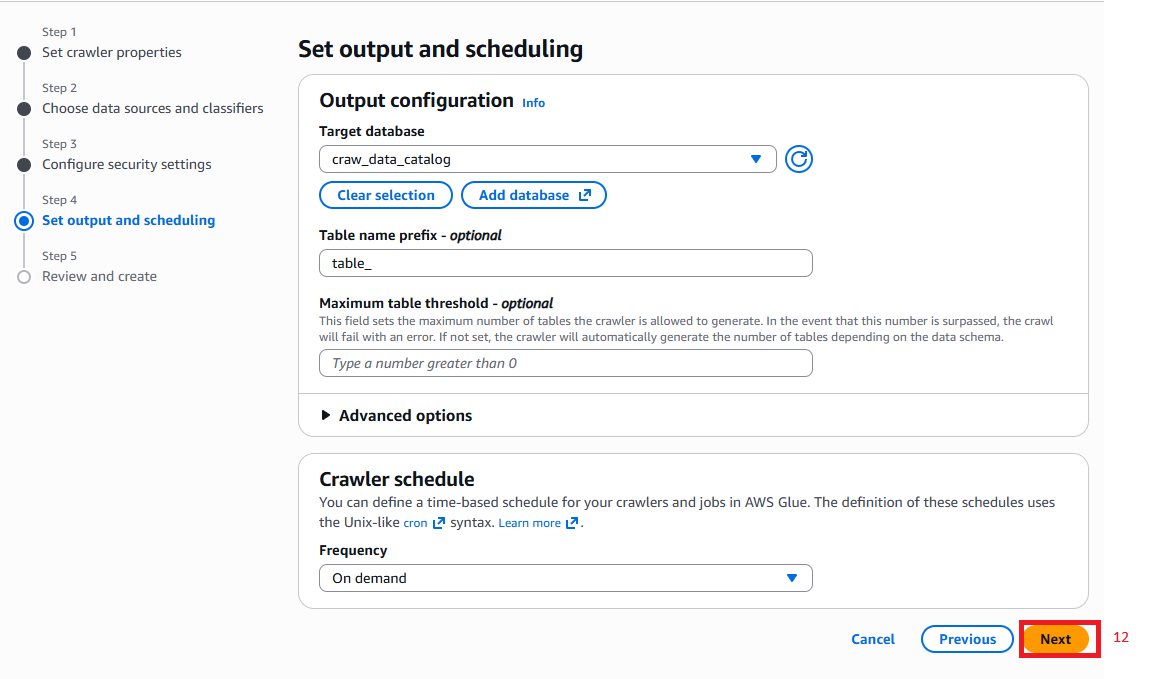

Step 4: Set output and scheduling

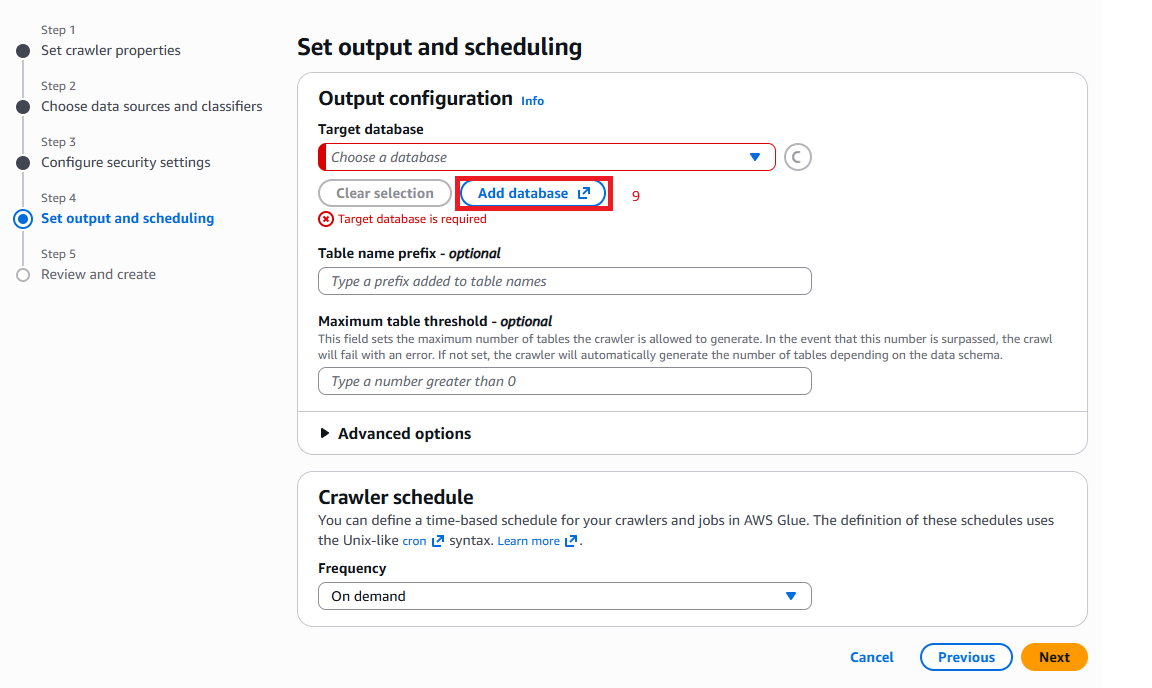

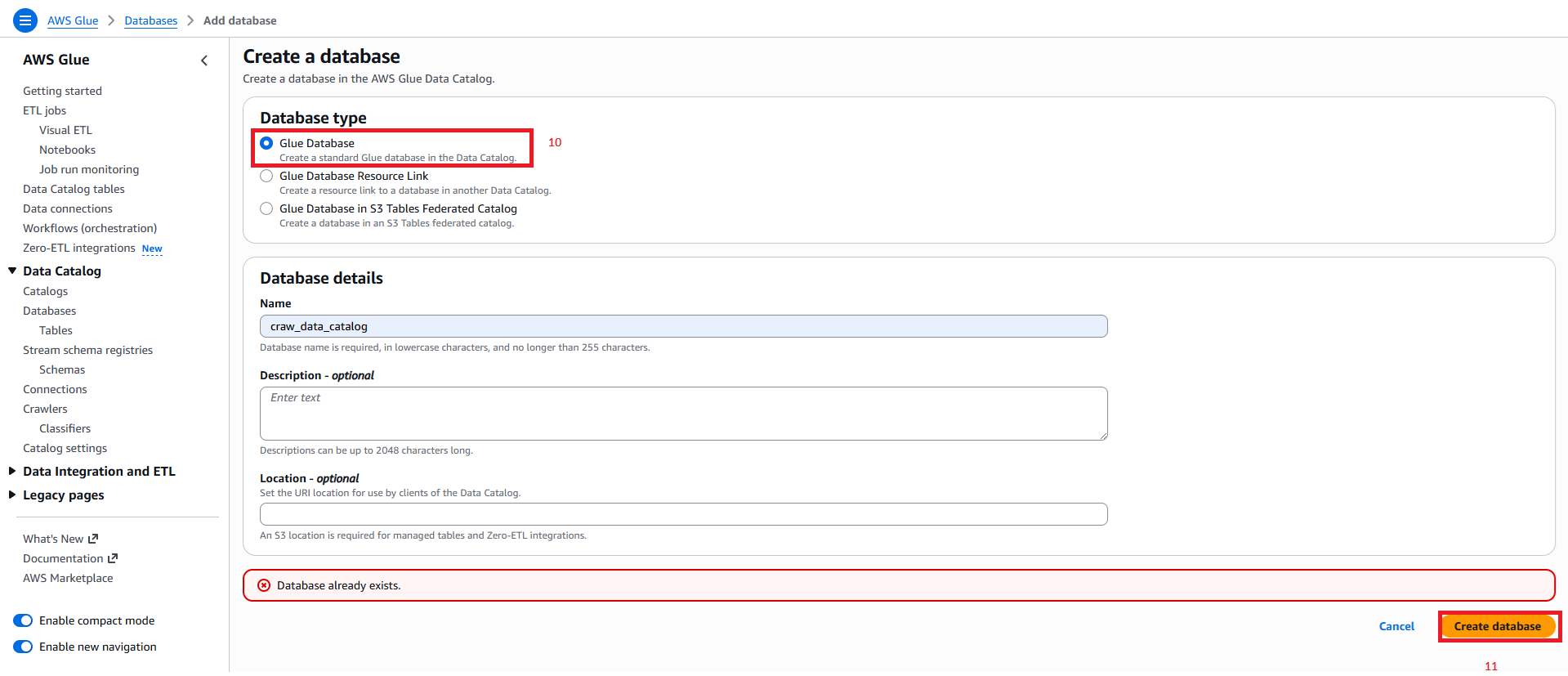

1. Click button Add Database

2. Create a standard Glue database in the Data Catalog.

3. Click Next to review Crawlers Setup

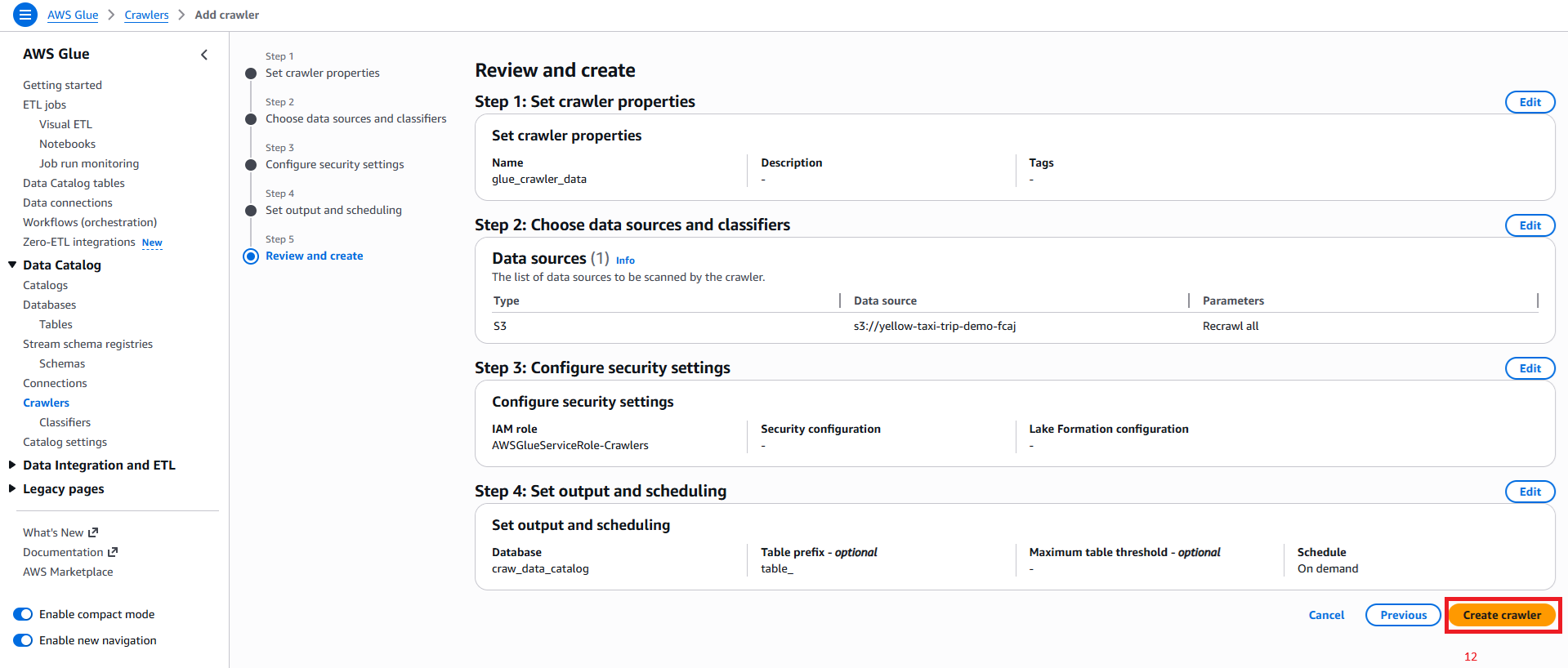

Review and create

1. Review all the settings and click Create crawler
