Analytics Pipeline with AWS Glue

In this chapter, we will learn the fundamental concepts behind an analytics pipeline using Amazon S3, AWS Glue Crawler, AWS Glue Data Catalog, and AWS Glue Visual ETL.

The purpose of this chapter is to help you understand how these AWS services work together before we start the hands-on labs.

What Is an Analytics Pipeline?

An analytics pipeline is a process that takes raw data, prepares it, transforms it, and makes it ready for analysis or reporting.

In this workshop, the pipeline follows this flow:

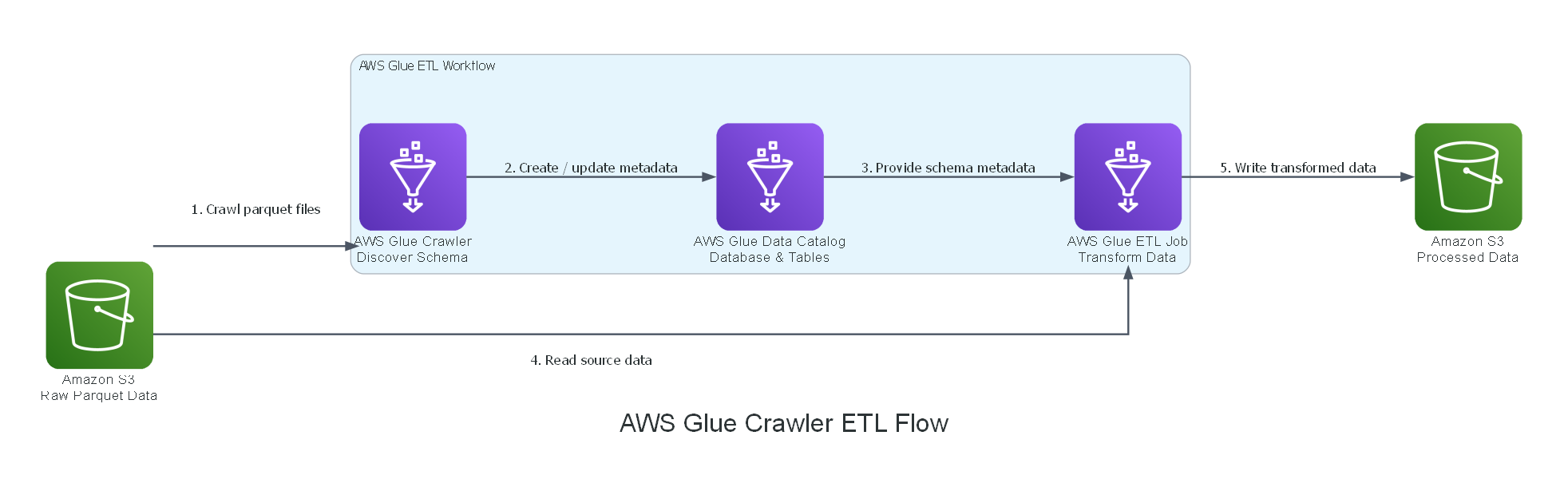

The simplified architecture is shown below:

At a high level:

• Amazon S3 stores the raw data files.
• AWS Glue Crawler scans the data and discovers its structure.
• AWS Glue Data Catalog stores the metadata.
• AWS Glue Visual ETL reads the cataloged data and transforms it.
• Amazon S3 stores the processed output.

Why Do We Need This Pipeline?

Raw data stored in Amazon S3 is useful, but by itself it is not always ready for analytics.

For example, if we only have Parquet files in S3, a processing service still needs to know:

• Where the data is located
• What file format the data uses
• What columns exist in the dataset
• What data type each column has
• Whether the data is partitioned
• Where the processed result should be written

AWS Glue helps solve this by providing metadata discovery, catalog management, and ETL processing.

Core Services in This Pipeline

This workshop uses four main components.

Amazon S3: Data Storage Layer

Amazon S3 is used as the storage layer of the data pipeline.

In this workshop, raw data is stored in S3 using Parquet format.

Parquet is commonly used for analytics workloads because it is:

• Columnar
• Compressed
• Efficient for large-scale data processing
• Well supported by AWS Glue and Spark-based ETL jobs

A common S3 layout in a data lake looks like this:

s3://data-lake/raw/
s3://data-lake/processed/
s3://data-lake/curated/

AWS Glue Crawler: Schema Discovery Layer

AWS Glue Crawler is responsible for scanning the raw data in S3.

The crawler reads the files and tries to understand their structure.

It can detect:

• File format
• Column names
• Data types
• Partition structure
• S3 location
• Table metadata

After scanning the files, the crawler creates or updates tables in the AWS Glue Data Catalog.

For example:

Raw data:
s3://yellow-taxi-trip-demo-fcaj/

Crawler output:
Database: craw_data_catalog
Table: table_yellow_taxi_trip_demo_fcaj
Location: s3://yellow-taxi-trip-demo-fcaj/
Format: Parquet

AWS Glue Data Catalog: Metadata Layer

AWS Glue Data Catalog is a centralized metadata repository.

It stores information about your datasets, such as:

• Database name
• Table name
• Column names
• Data types
• Partition keys
• File format
• S3 location

The Data Catalog does not store the actual data rows.

Instead, it tells AWS services how to find and read the data from S3.

Example metadata:

Database: craw_data_catalog
Table: table_yellow_taxi_trip_demo_fcaj
Format: Parquet
Location: s3://yellow-taxi-trip-demo-fcaj/
Columns: vendor_id, pickup_datetime, dropoff_datetime, total_amount, ...

AWS Glue Visual ETL: Transformation Layer

After the data is cataloged, we can use AWS Glue Visual ETL to build a transformation workflow.

Visual ETL allows us to design an ETL job using a visual interface instead of writing the full Spark code manually.

The ETL job can:

• Read source data from a Glue Data Catalog table
• Select or rename columns
• Filter records
• Clean invalid data
• Apply transformations
• Write output to another S3 location

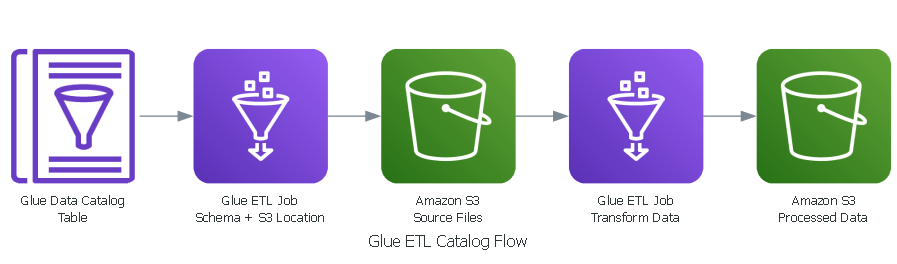

The important point is that the ETL job uses the Data Catalog table to understand the source data.

However, when the job runs, it still reads the actual Parquet files from Amazon S3.

How the Services Work Together

The full flow works like this:

1. Raw Parquet files are uploaded to Amazon S3.
2. AWS Glue Crawler scans the S3 path.
3. The crawler detects schema and file metadata.
4. The crawler creates or updates a table in AWS Glue Data Catalog.
5. AWS Glue Visual ETL uses the catalog table as input.
6. The ETL job reads the actual data from S3.
7. The ETL job transforms the data.
8. The transformed result is written back to Amazon S3.

What You Should Understand Before Starting

Before moving to the hands-on labs, make sure you understand these key ideas:

Module Structure

This chapter includes the following sections:

Key Takeaways

By the end of this introduction, you should understand that:

• Amazon S3 is the storage layer.
• AWS Glue Crawler is the schema discovery layer.
• AWS Glue Data Catalog is the metadata layer.
• AWS Glue Visual ETL is the transformation layer.
• The pipeline starts with raw data and ends with processed data in S3.
