Testing Chatbot (RAG)

Target

After successfully ingesting data into the Vector Store, it is time to verify the results. In this section, you will act as an end-user, asking the Chatbot questions directly within the AWS Console interface to observe how the RAG system operates.

We will focus on 2 factors:

1. Accuracy: Does the AI answer correctly based on the documents?
2. Transparency: Can the AI cite the source (Citation) of the information?

Implementation Steps

Step 1: Configure the test window

To start chatting, we need to select a Foundation Model that will act as the “responder”.

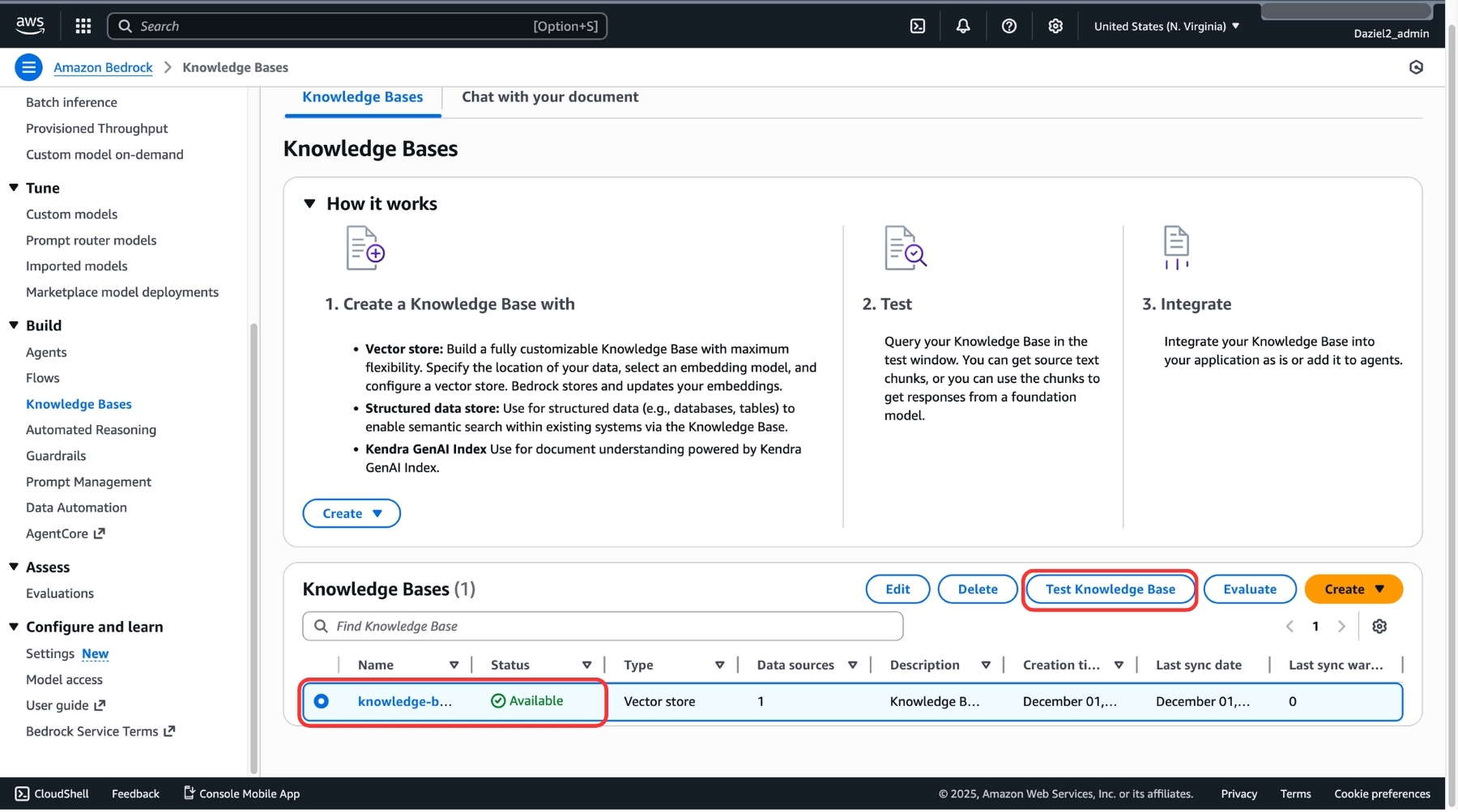

1. In your Knowledge Base details interface, look at the right panel titled Test knowledge base.

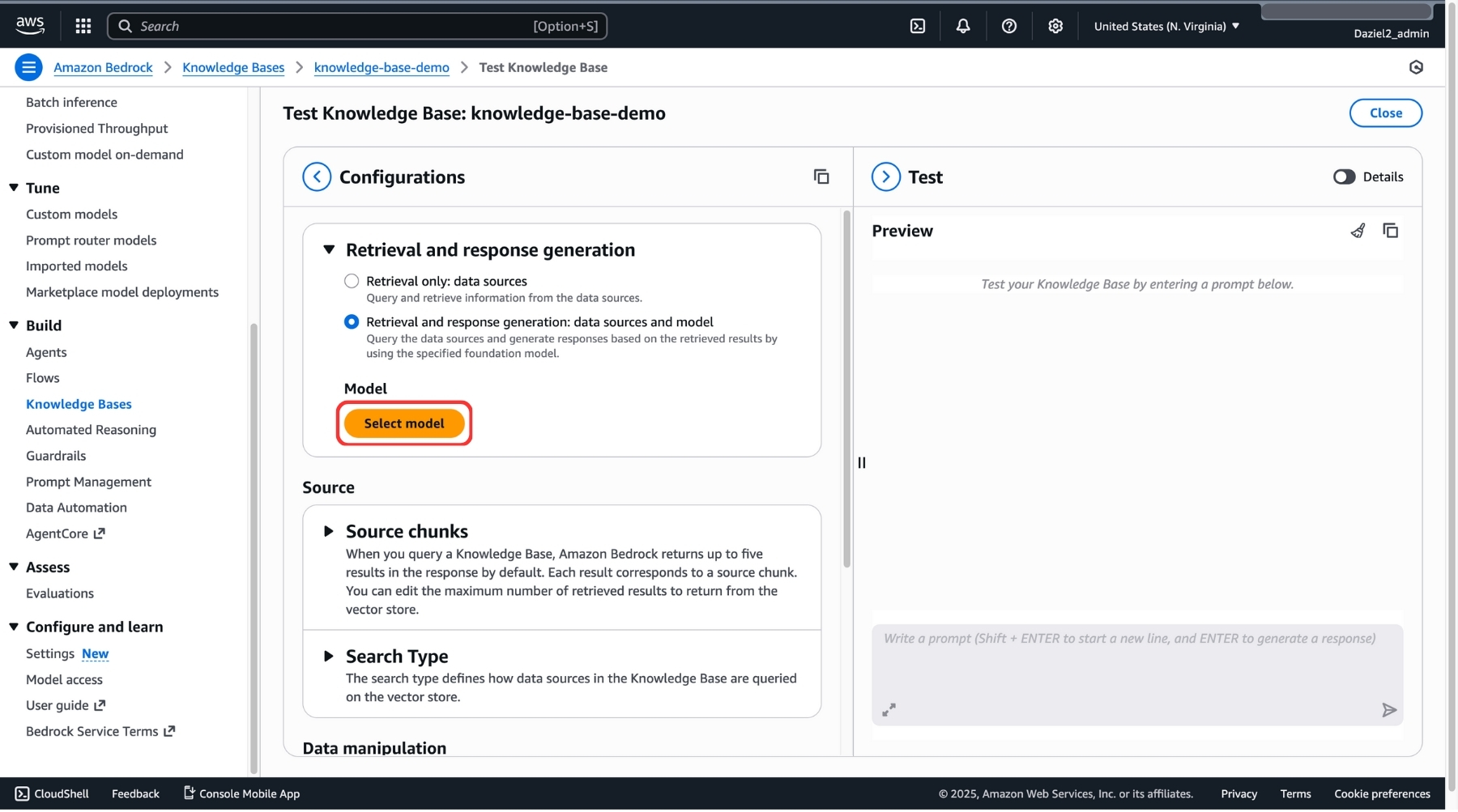

2. Click the Select model button.

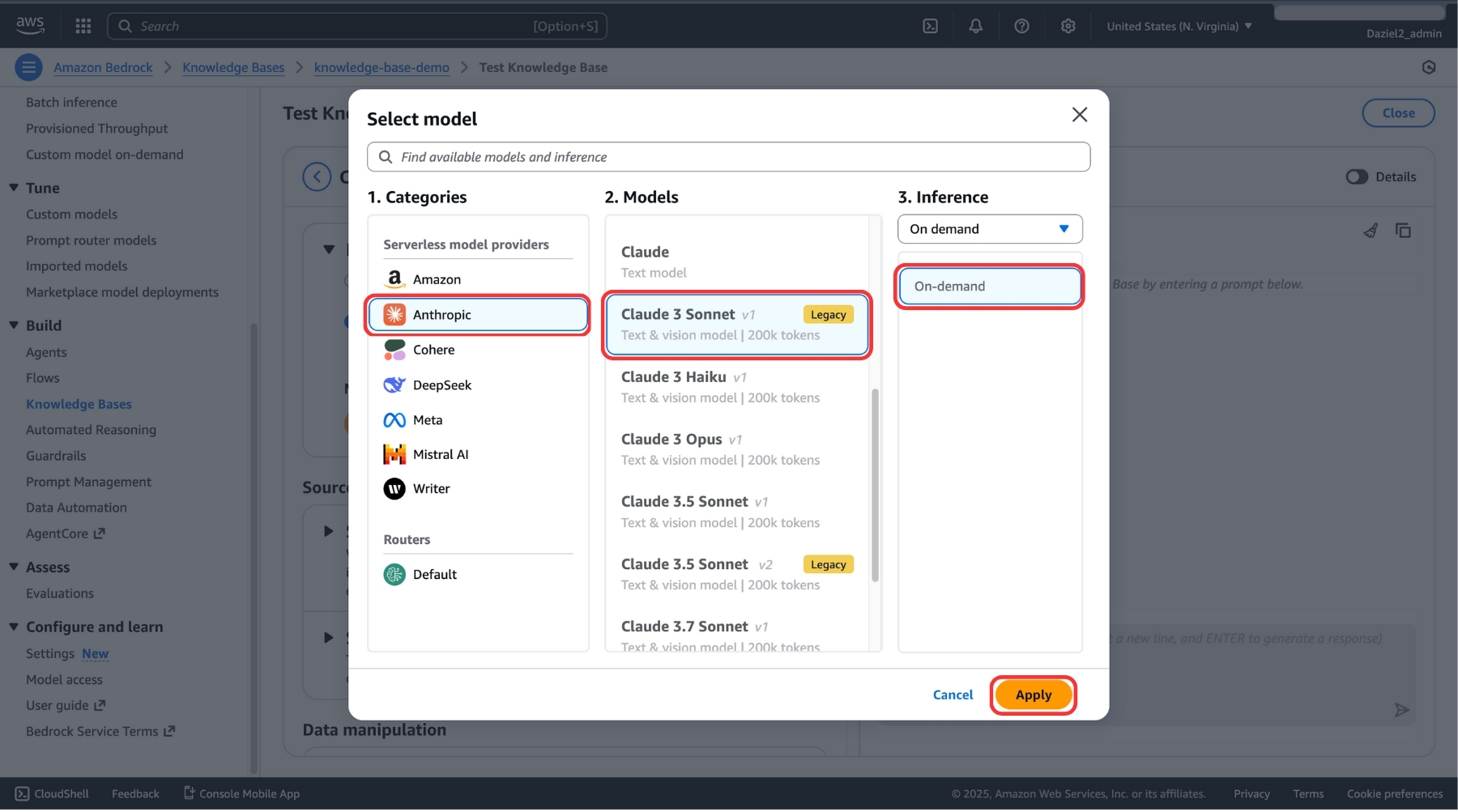

3. In the selection panel that appears:
   • Category: Select Anthropic.
   • Model: Select Claude 3 Sonnet (or Claude 3.5 Sonnet / Haiku depending on the model you enabled).
   • Throughput: Keep On-demand.
4. Click Apply.

Step 2: Conduct conversation (Chat)

Now, try asking a question related to the document content you uploaded.

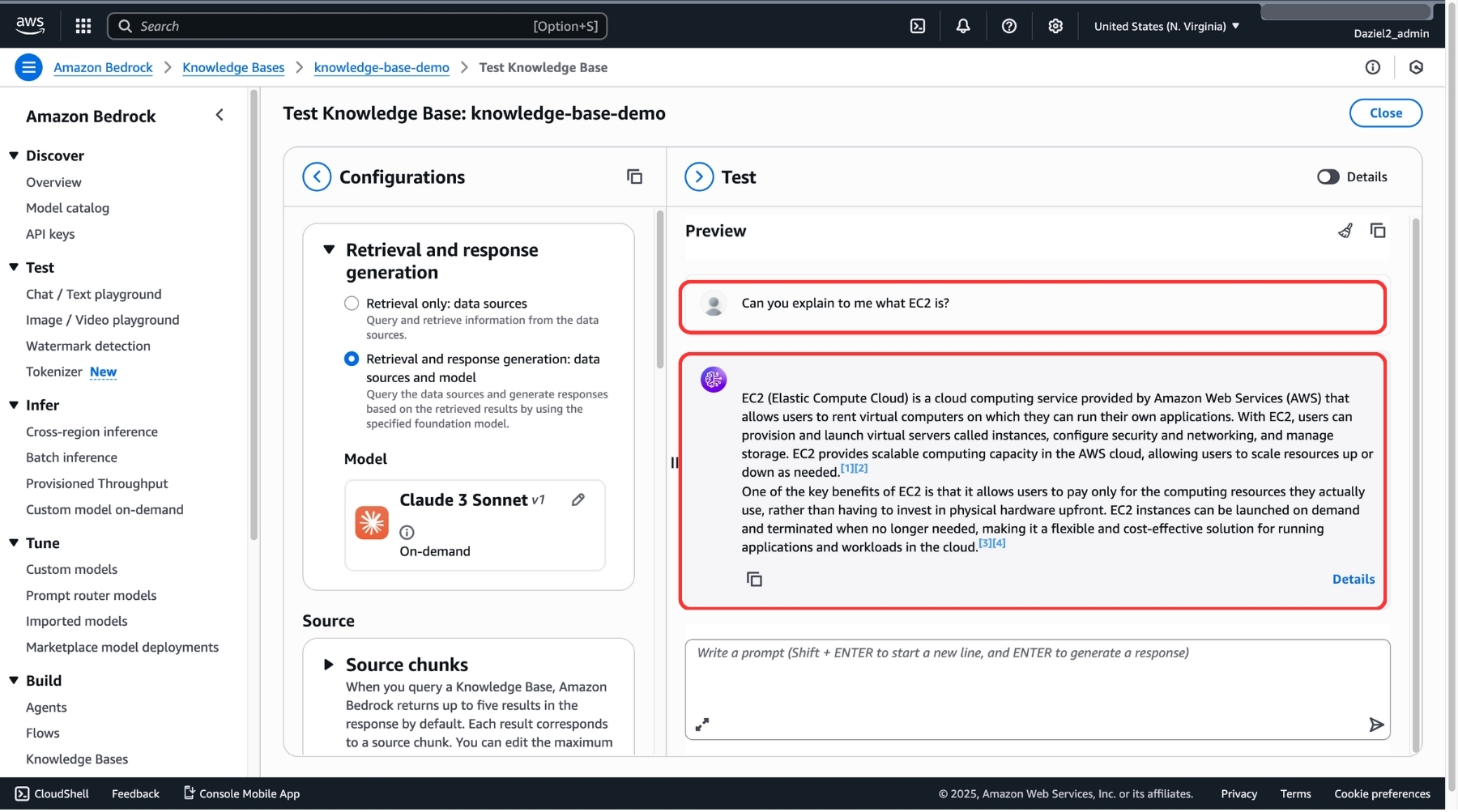

1. In the input box (Message input), type your question.
   • Example: If you uploaded the “AWS Overview” document, ask: “Can you explain to me what EC2 is?”.
2. Click Run.
3. Observe the result:
   • The AI will think for a few seconds (querying the Vector Store).
   • Then, it will answer in natural language, summarizing the found information.

Step 3: Verify data source

This is the most important feature of RAG that distinguishes it from standard ChatGPT: the ability to prove the source of information.

1. In the AI’s response, pay attention to the small numbers (footnotes) or the text Show source details.
2. Click on those numbers or the details button.

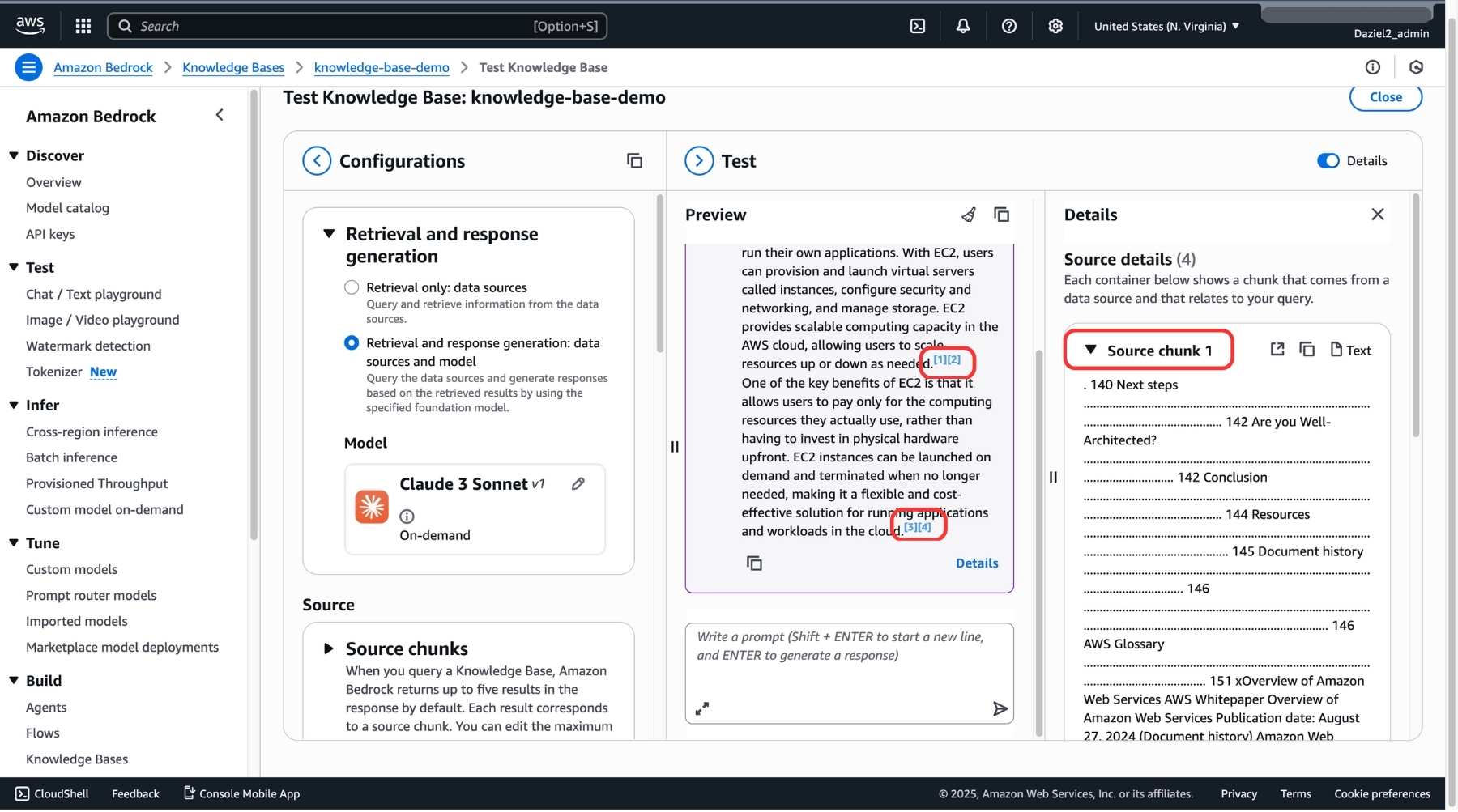

3. A Source details window will appear, displaying:
   • Source chunk: The exact original text segment that the AI found in the document.
   • Score: Similarity score (relevance).
   • S3 Location: Path to the original file.

Seeing this original text segment proves that the AI is not “hallucinating” but is actually reading your documents.

Step 4: Test with irrelevant questions (Optional)

To see how the system reacts when information is not found.

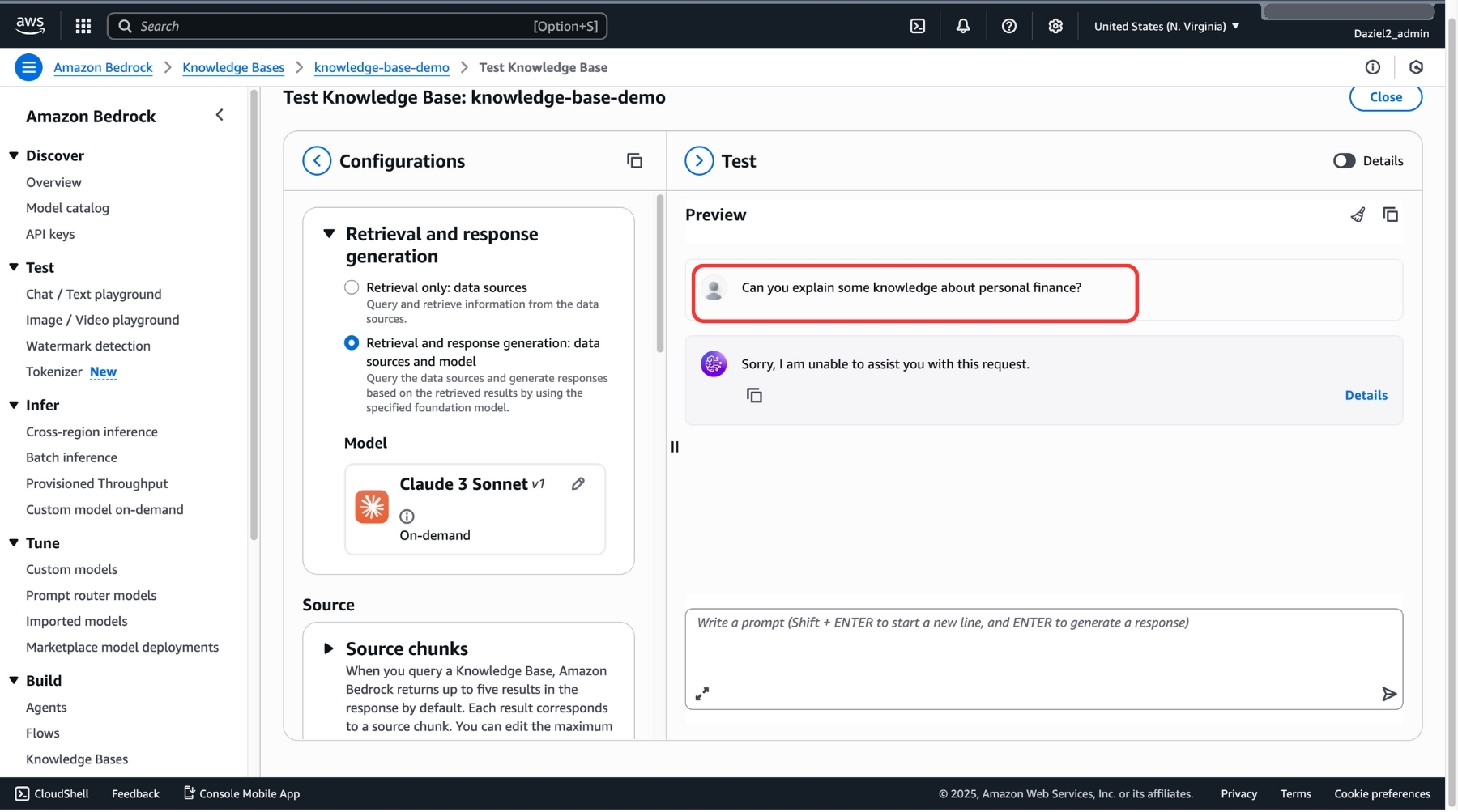

1. Ask a question completely unrelated to the documents.
   • Example: “Can you explain some knowledge about personal finance?” (While your documents are about Cloud Computing).
2. Expected Result:
   • The AI might answer based on its general knowledge (if not restricted).
   • OR the AI will answer “Sorry, I am unable to answer your question based on the retrieved data” - This is the ideal behavior for an enterprise RAG application.
